Internal Groundset Flagpoles
| Model Number | SW25 I | SW30 I | SW35 I | SW40 I |
| Spec Sheet | Spec Sheet PDF | Spec Sheet PDF | Spec Sheet PDF | Spec Sheet PDF |
| Stress Chart | Stress Chart PDF | Stress Chart PDF | Stress Chart PDF | Stress Chart PDF |
| Above Ground Height | 25′ | 30’ | 35’ | 40’ |
Snaps (stainless steel) | 1 pair | 1 pair. | 1 pair | 1 pair |
| Overall Height | 28′ | 33′ | 39′ | 44′ |
| Polyester Halyard | 50′ of #10 | 60′ of #10 | 70′ of #10 | 80′ of #10 |
| Top Diameter | 3″ | 3” | 3” | 3” |
| Butt Diameter | 6″ | 6.75″ | 7.25″ | 8″ |

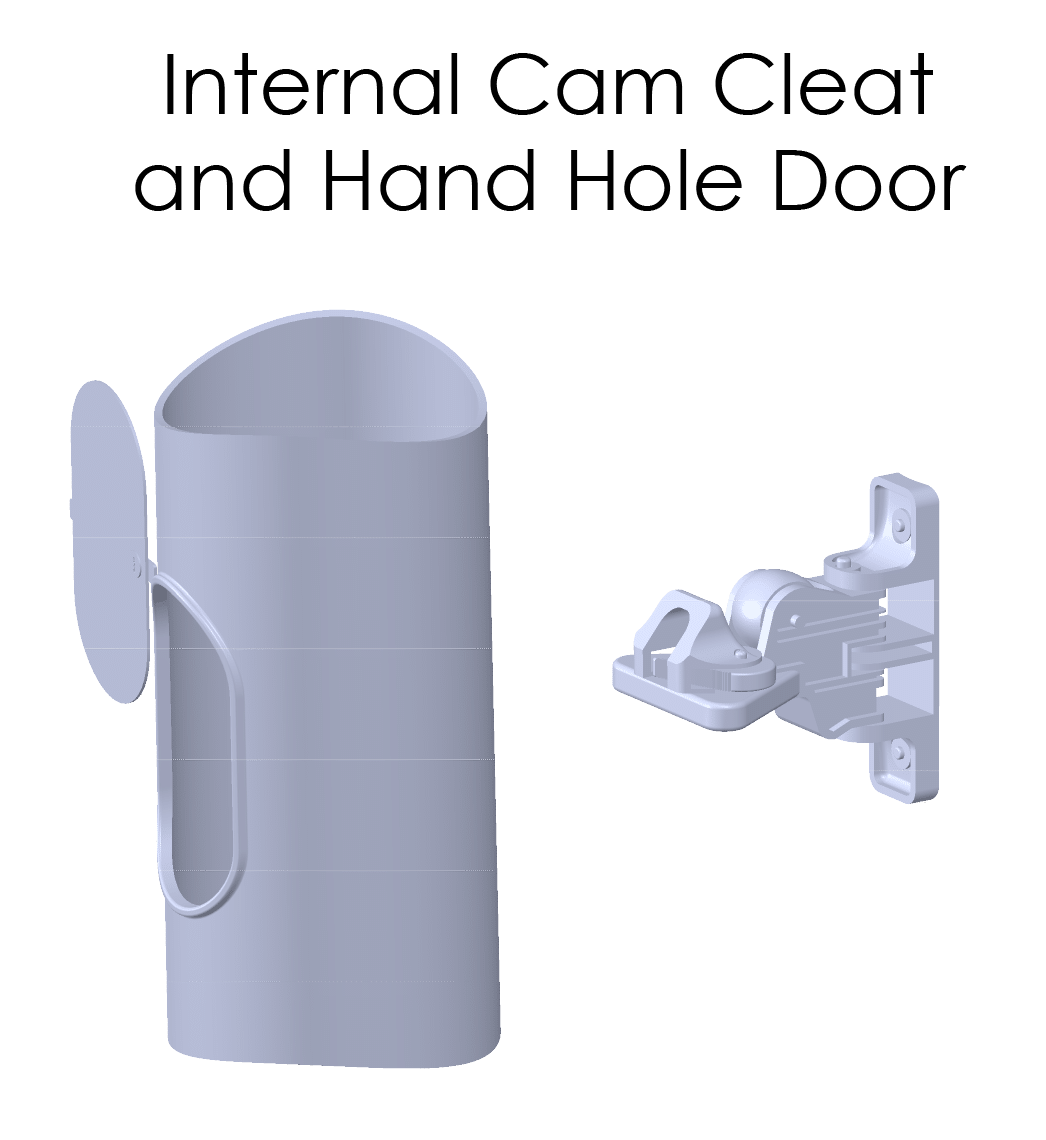

| Cleat | Marine Grade Swivel Cam Cleat | Marine Grade Swivel Cam Cleat | Marine Grade Swivel Cam Cleat | Marine Grade Swivel Cam Cleat |
| Gold Anodized Ball | 5″ | 6″ | 8″ | 8″ |
| Truck | Cast FG Stationary Truck | Cast FG Stationary Truck | Cast FG Stationary Truck | Cast FG Stationary Truck |
| Retaining Ring | Small | Small | Small | Small |
| Vinyl Covers | 1 pair | 1 pair | 1 pair | 1 pair |
| Ground Sleeve Length | 3’x8″ | 3’x8″ | 4′ x 9″ | 4′ x 9″ |
| Counterweight | Small | Small | Small | Small |
| Pole Weight | 75 | 107 | 167 | 217 |
| Shipping Weight | 117 | 154 | 224 | 279 |
| Ground Sleeve I.D. | 8″ | 8″ | 9″ | 9″ |
| Flash Collar | 16″ | 16″ | 16″ | 16″ |
| Security Driver | Yes | Yes | Yes | Yes |
| Standard Flag Size | 5’x8′ | 5’x8′ | 6’x10′ | 6’x10′ |
