Internal Groundset Flagpoles
Poles 50’ and 60’ are equipped with an internal field splice which is cemented and pinned with stainless pins to the bottom section. The top section simply slides over the self-aligning splice for easy field assembly.
| Model Number | SW50 I | SW60 I |
| Spec Sheet | Spec Sheet PDF | Spec Sheet PDF |
| Stress Chart | Stress Chart PDF | Stress Chart PDF |
| Above Ground Height | 50′ | 60′ |
| Overall Height | 55′ | 66” |
| Top Diameter | 4.5″ | 4.5″ |
| Ground Sleeve I.D. | 14″ | 14″ |
| Ground Sleeve Length | 5′ x 14″ | 6′ x 14″ |
| Butt Diameter | 10.5″ | 11″ |

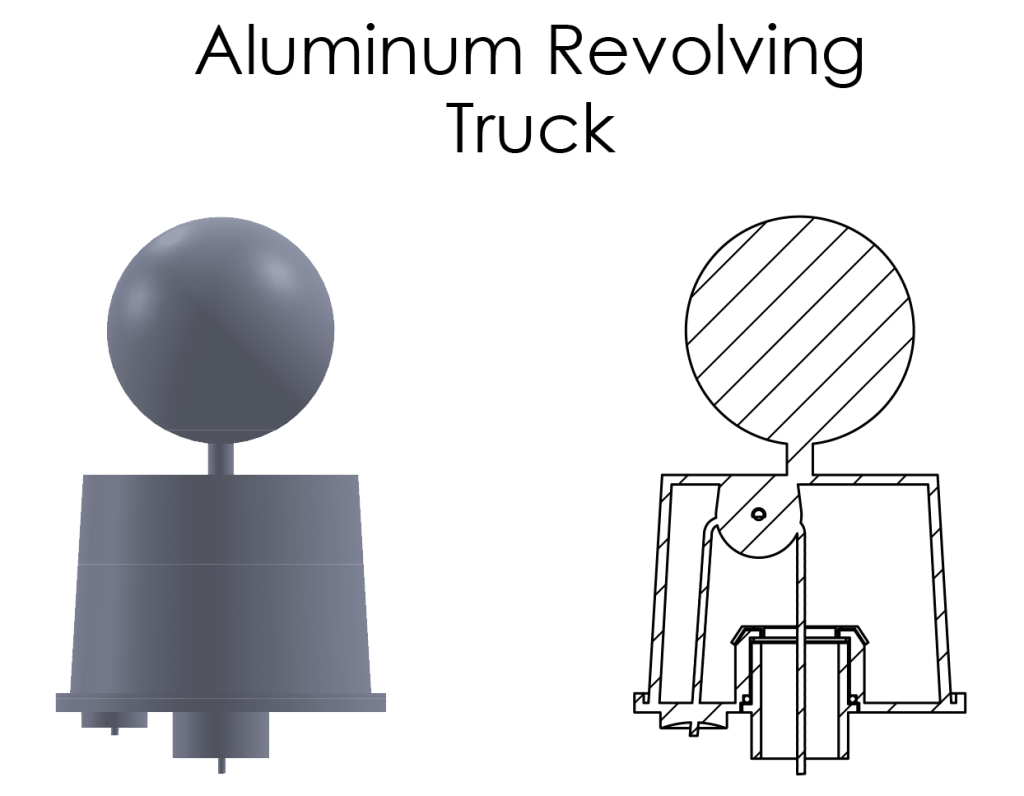

| Gold Anodized Ball | 10″ | 10″ |
| Truck | Revolving Truck | Revolving Truck |
Flag Arrangement | 1 of 8’x12′ | 1 of 8’x12′ |
| Snaps | 4.5″ | 4.5″ |
| Handle | Winch & Winch Handle | Winch & Winch Handle |
| Counterweight | Large | Large |
| Cable | 1/8″ S/S Aircraft Cable | 1/8″ S/S Aircraft Cable |
| Retaining Ring | Medium | Medium |
| Pole Weight (lbs.) | 397 | 629 |
| Shipping Weight | 598 | 882 |
| Flash Collar | 23″ | 23″ |
| Standard Flag Size | 8′ x 12′ | 10’x15′ |
