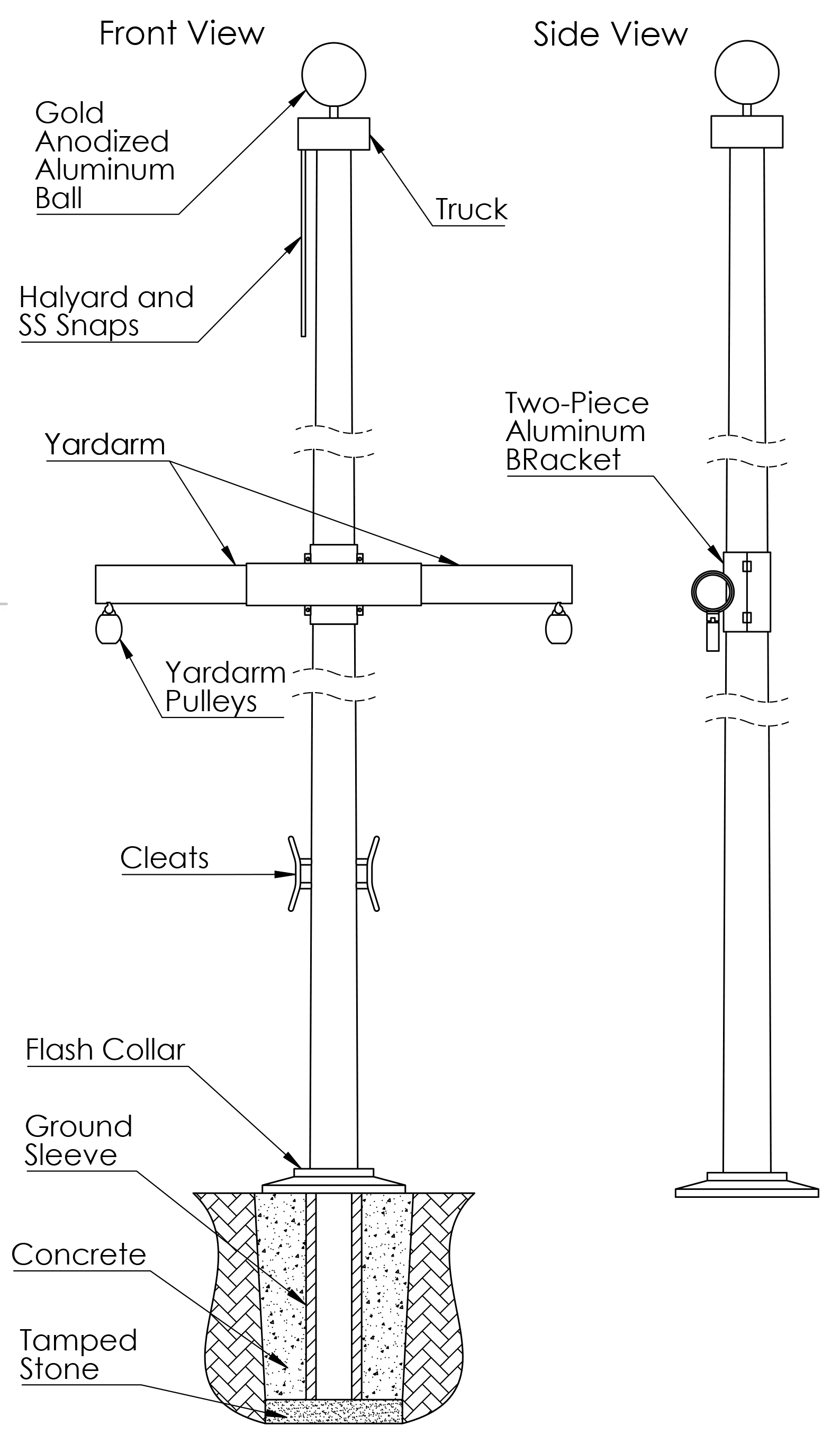

Nautical Single Masted Flagpole
with Yardarm 50′-60′
| Model Number | NSM50- YA | NSM60- YA |
| Spec Sheet | Spec Sheet PDF | Spec Sheet PDF |
| Stress Char | Stress Chart PDF | Stress Chart PDF |
| Above Ground Height | 50’ | 60’ |
Burial Depth | 5′ | 6′ |
| Polyester Halyard | 3 of #12 | 3 of #12 |
| Top Diameter | 4.5″ | 4.5″ |
| Butt Diameter | 10.5″ | 11″ |
| Length | 13.5′ | 16′ |
| Gold Anodized Ball | 10″ | 10″ |
| Yardarm | ||
| Center Diameter | 4.5″ | 4.5″ |
| Truck | Revolving Alum. Truck | Revolving Alum. Truck |
| Powder Coated Cleat | 3 of 10″ | 3 of 10″ |
| End Diameter | 3″ | 3″ |
| Ground Sleeve | 5′ x 14″ | 5′ x 14″ |
| Snaps (stainless steel) | 4.5″ | 4.5″ |
| Flash Collar | 23″ | 23″ |
| Pole Weight | 397 | 629 |
| Shipping Weight | 648 | 862 |
| Pole Weight (w/YA) | 442 | 679 |
Yardarm Bracket & Stick (pre-assembled with S/S Eye-Bolts & Pulleys)
*Shipping Weight includes weight of packaging and fittings
